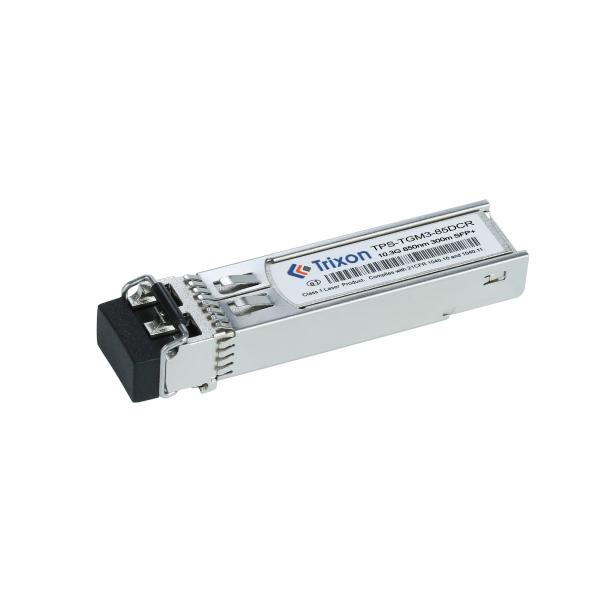

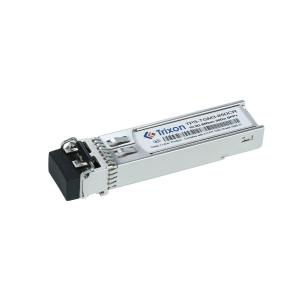

TPS-TGM3-85DCR 10G SFP+ Transceiver Module up to 300m 850nm
The SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module designed to provide a high-speed data connection for 10Gbps 300m distance. It is compliant with optical fiber communication standards and supports full-duplex communication over Duplex type cable connections. This module has LC connector type and its data transmission rate is up to 10Gbps. This SFP+ Transceiver Module is the ideal choice for telecom, datacom, storage and other high-speed optical network applications.
| Attributes | Values |
|---|---|
| Product Name | SFP+ Transceiver Module |
| Connector Type | LC |
| Distance | 300m |
| Data Rate | 10Gbps |
| Wavelength | 850nm |
| Temperature Range | -5~70°C |
| Cable Type | Duplex |
| DDM/DOM | Yes |
| Fiber Type | Single-Mode |
| Compliant Code | MSA SFF-8472 |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 840 | 850 | 860 | nm |
| Spectral Width (RMS) | Δλ | - | - | 0.65 | nm |
| Average Output Power*note5 | Pout | -7.3 | - | -1 | dBm |
| Extinction Ratio | ER | 3 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 3.9 | dB |
| Optical Return Loss Tolerance | ORLT | - | - | 12 | dB |
| Output Optical Eye | Compliant with IEEE802.3ae-2005 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 840 | - | 860 | nm |
| Receiver Sensitivity*note6 | SEN | - | - | -11.1 | dBm |
| Receiver Overload | Pmax | -1 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -13 | dBm |
| LOS Assert | LOSA | -25 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |
TPS-TGM3-85DCR: Transceiver Module is an ideal choice for data centers, enterprise networks, and storage area networks. It is designed for use in a variety of applications such as high-performance computing, enterprise networking, storage, and other high-bandwidth applications. It provides a reliable connection for 10Gbps network links and is compatible with a variety of networking equipment.
SFP+ Transceiver Module technical support and services include:
Packaging and Shipping for the SFP+ Transceiver Module:
The SFP+ Transceiver Module is packaged and shipped in a secure, ESD-safe box. The box is labeled with the product name and description, as well as the relevant certification information. The box also includes a packing list with the details of the product, including the number of units in the shipment, the destination address, and the contact information for the customer.
The SFP+ Transceiver Module is shipped via a reputable carrier, and the customer is provided with tracking information for the shipment. Delivery time depends on the destination, but typically takes 2-5 business days.
|
|
