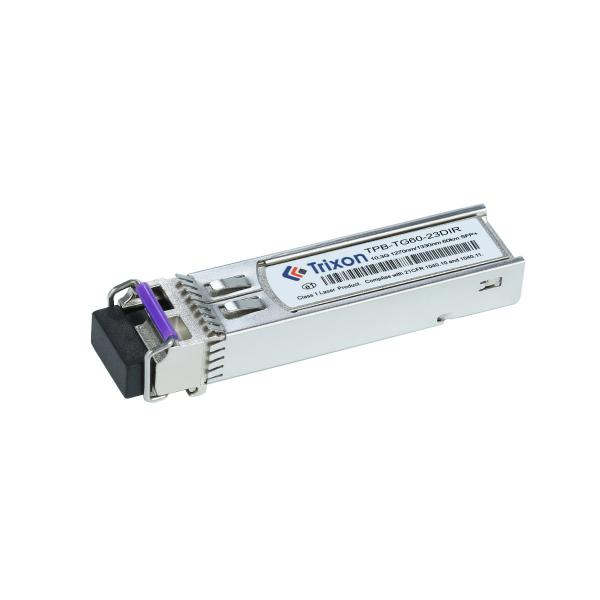

TPB-TG60-23DIR BIDI 10G 60km TX1270nm,RX1310nm,Reliable SFP Transceiver Module
The SFP+ Transceiver Module, also known as Small Form-Factor Pluggable Plus Transceiver Module, is a high-performance, cost-effective module designed to support up to 10Gbps data rate over a single-mode fiber at a maximum distance of 60km. It is an ideal solution for data center, enterprise, and service-provider applications.
The SFP+ Transceiver Module is compliant with MSA SFF-8472 and features an LC connector type. It is designed to fulfill the demands of a variety of network applications, such as 10G Ethernet, Fiber Channel, and other optical links. It also supports digital optical monitoring (DOM) function to allow system designers to monitor real-time parameters of the transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
This SFP+ Transceiver Module offers an excellent solution for high speed 10Gbps fibre connections. It provides superior performance, scalability, and reliability in a cost-effective package, making it the ideal choice for today's high-speed networks and storage solutions.
| Parameter | Value |
|---|---|
| Compliant Code | MSA SFF-8472 |
| DDM/DOM | Yes |
| Distance | 60km |
| Fiber Type | Single-Mode |
| Temperature Range | -40~85°C |
| Data Rate | 10Gbps |
| Wavelength | TX1270nm,RX1310nm |
| Connector Type | LC |
| Cable Type | Duplex |
| Product Name | Small Form-Factor Pluggable Plus Transceiver Module |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1260 | 1270 | 1280 | nm |
Side Mode Suppression Ratio | SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 1 | nm |
| Average Output Power*note6 | Pout | +1 | - | +6 | dBm |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 2 | dB |
| Relative Intensity Noise | RIN | - | - | -128 | dB/Hz |
| Output Optical Eye | Compliant with IEEE802.3ae-2005 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1320 | - | 1340 | nm |
| Receiver Sensitivity*note7 | SEN | - | - | -20 | dBm |
| Receiver Overload | Pmax | -7 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -18 | dBm |
| LOS Assert | LOSA | -30 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |
TPB-TG60-23DIR BIDI 10G 60km SFP transceiver module is suitable for application scenarios that require high-speed, long-distance transmission and reliable communication in industrial environments, such as industrial automation, Internet of Things, field bus networks, power energy industry and railway transportation systems. It has industrial-grade reliability, stability and anti-interference capabilities, and is suitable for use in harsh industrial environmental conditions.
We offer a customized service that can be tailored to your specific needs. Whether in terms of transmission distance, wavelength, power budget, digital diagnostic monitoring, connector type or protocol support, we can tailor it to your requirements. We are committed to providing you with the most suitable solutions to ensure high-speed, stable and reliable data transmission for your commercial or industrial applications. Please contact us and let's discuss customization options to meet your specific needs.
SFP+ Transceiver Module provides comprehensive technical support and service. Customers can access a wide range of resources, including technical documents, online support, and contact options.
Technical documents such as application notes, datasheets, and user manuals can be found on our website. Customers can also find answers to frequently asked questions, and get help from our knowledgeable support team.
The online support platform provides customers with access to our technical support team. Customers can submit inquiries, receive help from our experts, and keep track of existing and resolved support cases.
We also offer various contact options such as email, telephone, and live chat. Customers can reach out to our support team via their preferred contact method and get quick assistance.
SFP+ Transceiver Module is shipped in a secure box with the following packaging materials:
The box must be sealed properly and labeled correctly to ensure safe delivery.
Reference Datasheet file code:DS100037 (10G BIDI)
|
|
